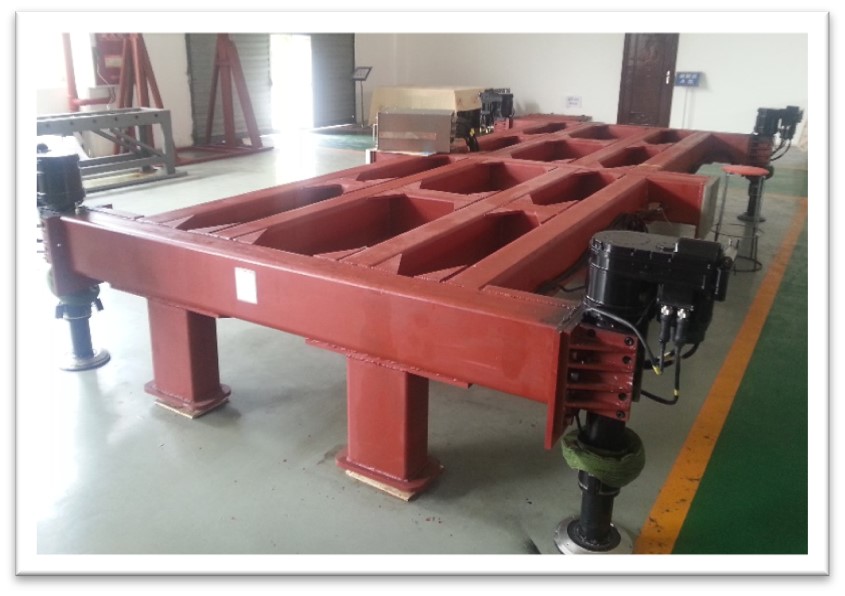

The multi-point electric leveling system is widely used in radar antenna vehicles, communication command vehicles, and engineering machinery. It offers high leveling accuracy, fast response, and cost-effectiveness.

Key Specifications:

        1. Four-point (optional 6, 8, 10-point)

        2. Leveling accuracy: 3′ (up to 30″)

        3. Single leg rated load: ≥8T (up to 30T)

        4. Single leg stroke: ≤600mm (customizable)

        5. Single leg weight: ≤145Kg

        6. Leveling time: <5 minutes

        7. Power supply: AC220V/AC380V optional

        8. Total power consumption: ≤8KW

        9. MTBF: >10000 hours

        10. MTTR: <5 hours Service life: ≥15 years
