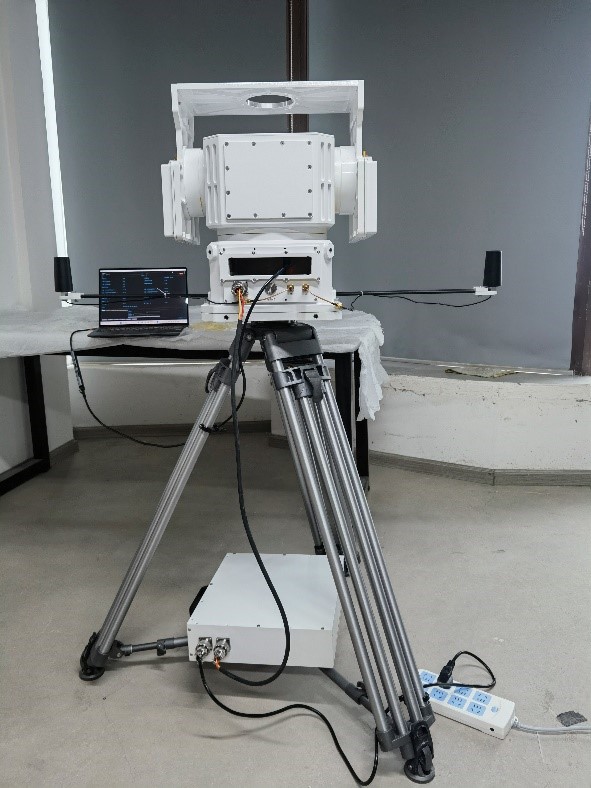

The 2-axis portable tracking turntable
Author：Repunite Technology Click：41 Release time：2025-01-27
The 2-axis portable tracking turntable is designed for tracking specific satellite trajectories, capable of carrying a 1.2-meter parabolic or flat antenna. It features flexible installation interfaces, lightweight design, quick setup, high precision, and real-time tracking.
Key Specifications | |
Resolution | 0.01° |
Accuracy | ≤0.1° |
Speed | Azimuth: ≤15°/s |
Elevation: ≤10°/s | |
Accelerated speed | ≤20°/s² |
Range | Azimuth：-180°~+180° |
Elevation: ：0°~90°(Limit protection) | |
Max. Payload Weight | ≤30kg |
Power Consumption | 150W |
Weight | ≤25kg |
Operation Temp. | -40℃~+65℃ |
